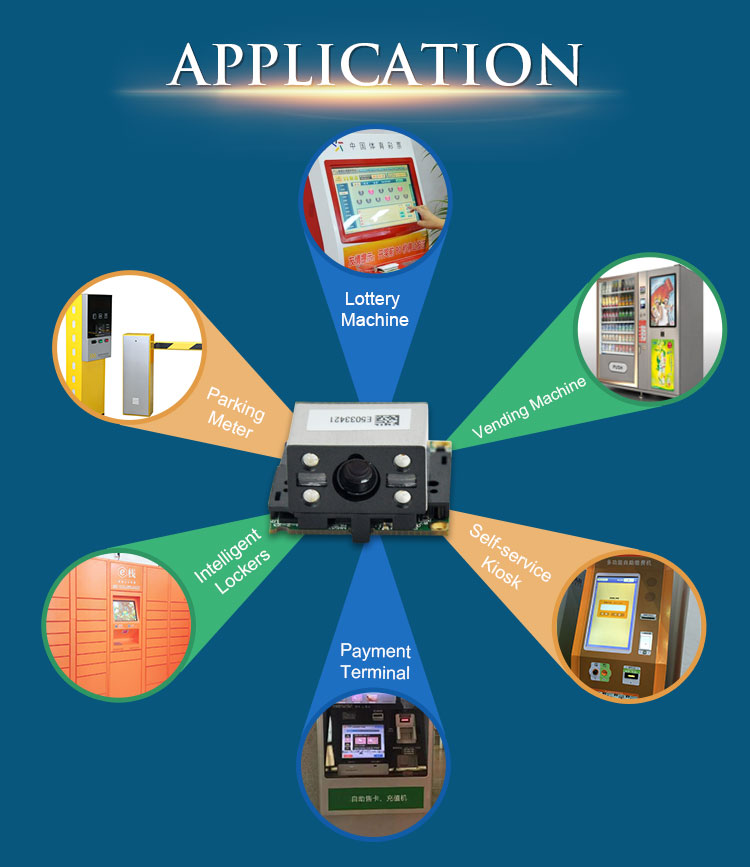

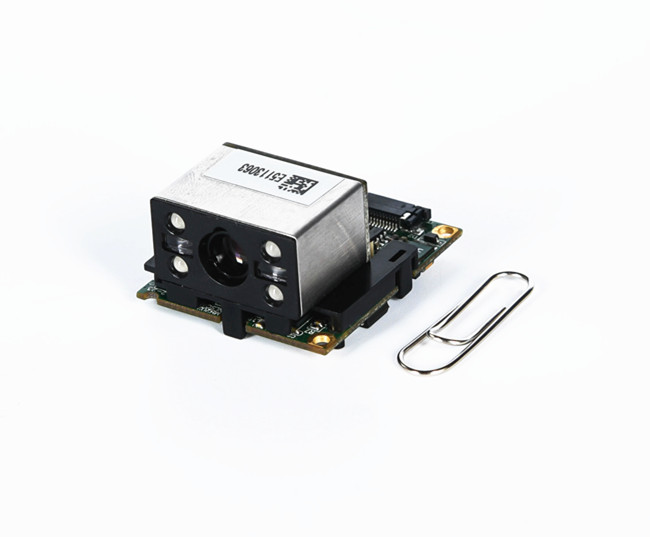

LV2028 is an embedded barcode reading engine. Its gray scale CMOS image capturer,a Computerized Image Recognition System, ensure the fast scanning and decoding accuracy on different barcode media such as paper, plastic card, and metal surface. It can be easily integrated into OEM equipments or systems (hand-held, portable, and mounted) to provide solutions for image capture, barcode reading, and barcode message processing.
LV2028 opens its image acquisition interface and camera control to OEM developers to allow their special integration needs. Software Development Kit is provided for easy and quick development of OEM applications.
Highlights of the 2028
» Slim size allowing easy embedding into OEM equipments and systems.
» Outstanding decoding performance for major 1D and 2D barcodes.
» High performance CPU and image capture module ensuring fast and accurate scans.
» Easy OEM software development and firmware upgrade.
| Model: | LV2028 |
| Interface: | RS232/TTL232, USB (HID-KBW, DataPipe, USB COM Emulation, HID-POS) |
| Image Sensor: | CMOS |
| Resolution | ≥ 5mil |
| Illumination | Red LED 625±10 nm |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, Chinese Sensible Code, Aztec Code, Maxicode, MicroPDF417*, etc. 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc. OCR: ID cards, passports |
| Operating Voltage | 5.0±10% VDC |
| Image Sensor | 752 * 480 CMOS |
| Field of View | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| PCS | ≥30% |
| Symbol Contrast | ≥ 25% |
| Field of View | Horizontal 36° ; Vertical 23° |
| Operating Temperature: | -20°C to 45°C |
| Weight: | 14g |
| Dimension : | 30.0(W) *35.0(D)*19.0(H) mm |
| Ambient light | 0 ~ 100,000 LUX |
