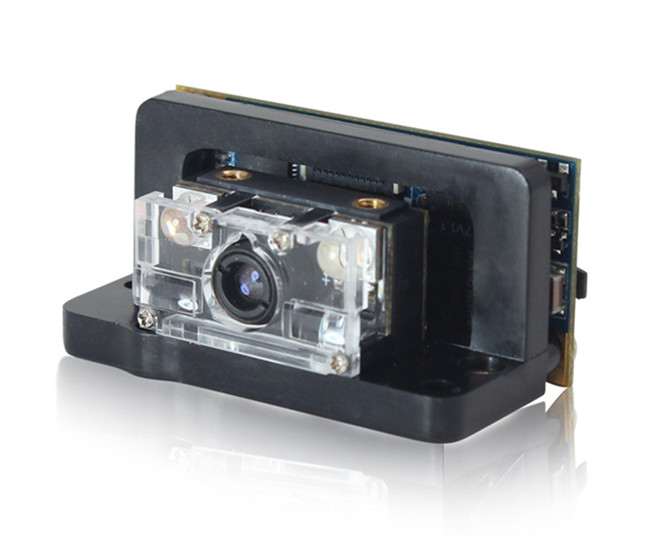

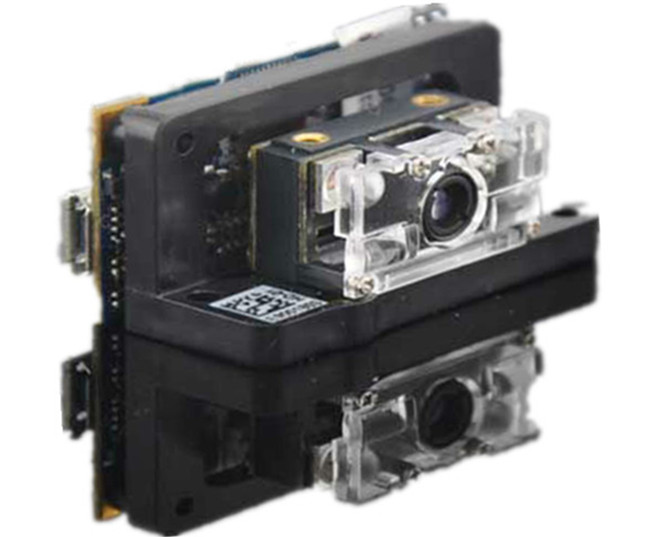

LV2017 supports both mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR Code, Data Matrix, Composite Code) as well as Chinese Sensible Code and GS1-DataBarTM (RSS) (Limited/Stacked/Expanded versions). LV2017 provides combined type (scan engine and decoder board brought together as one) and discrete type (scan engine and decoder board separated) to cater for different mounting needs.
Product Features:
1.Superior decoding performance：
Delivers speedy and accurate scanning performance and supports mainstream 1D/2D barcode symbologies.
2. Flexible structural design:
Offers both combined type and discrete type to meet different mounting needs.
3. Various interfaces:
Provides RS-232, USB and TTL (optional) interfaces and supports USB HID-KBW, COM Port Emulation,Data Pipe, etc
Product Specifications:
| Model: | LV2037 |
| Interface: | TTL-232, USB (HID-KBW, DataPipe, Com Port Emulation,HID POS, etc |
| Image Sensor: | CMOS |
| Resolution | ≥ 5mil |
| Illumination | Red LED 625±10 nm |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, Chinese Sensible Code, Aztec Code, Maxicode, MicroPDF417*, etc. 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc. |
| Operating Voltage | TTL-232: 3.3 ~ 5.5VDC; USB: 5.0VDC±10% |
| Image Sensor | 752 * 480 CMOS |
| Field of View | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| Symbol Contrast | ≥30% |
| Field of View | Horizontal 36° ; Vertical 23° |
| Operating Temperature: | -20°C to 50°C |
| Weight: | Combined type: 11.8g; Discrete type: 8.3g |
