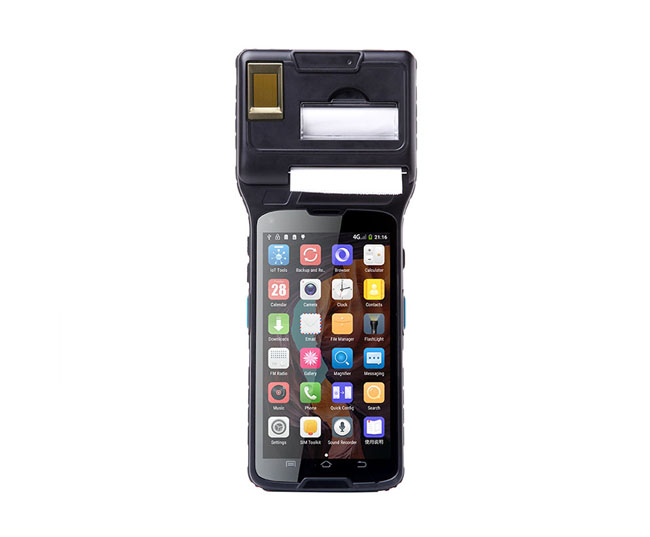

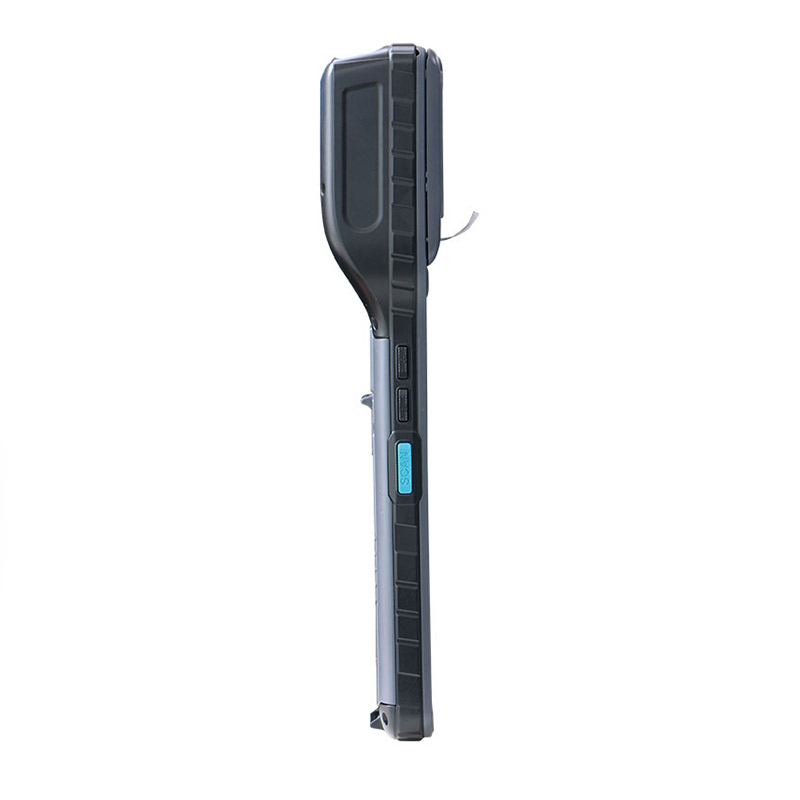

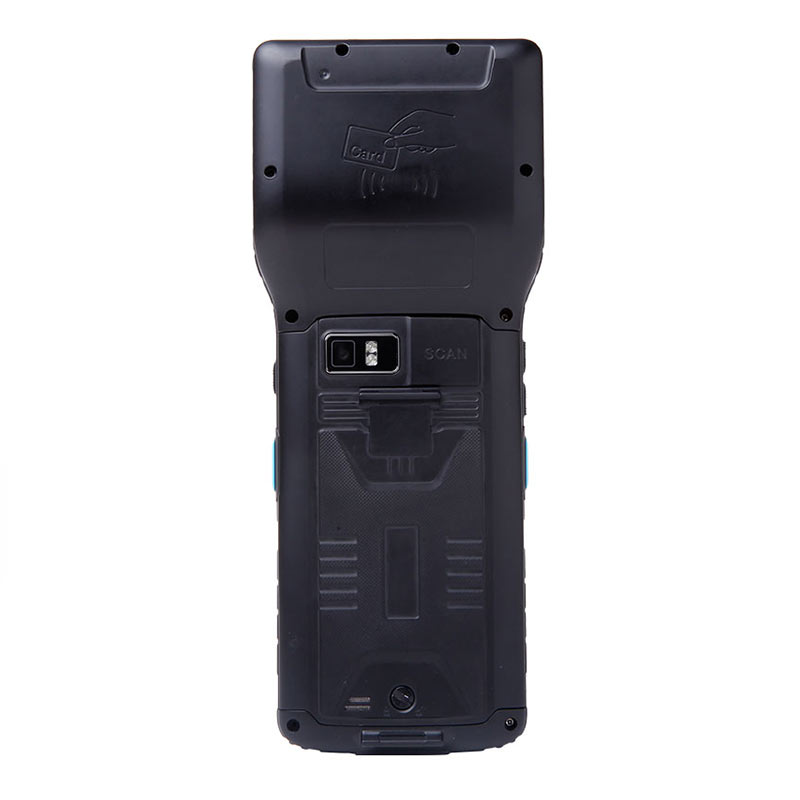

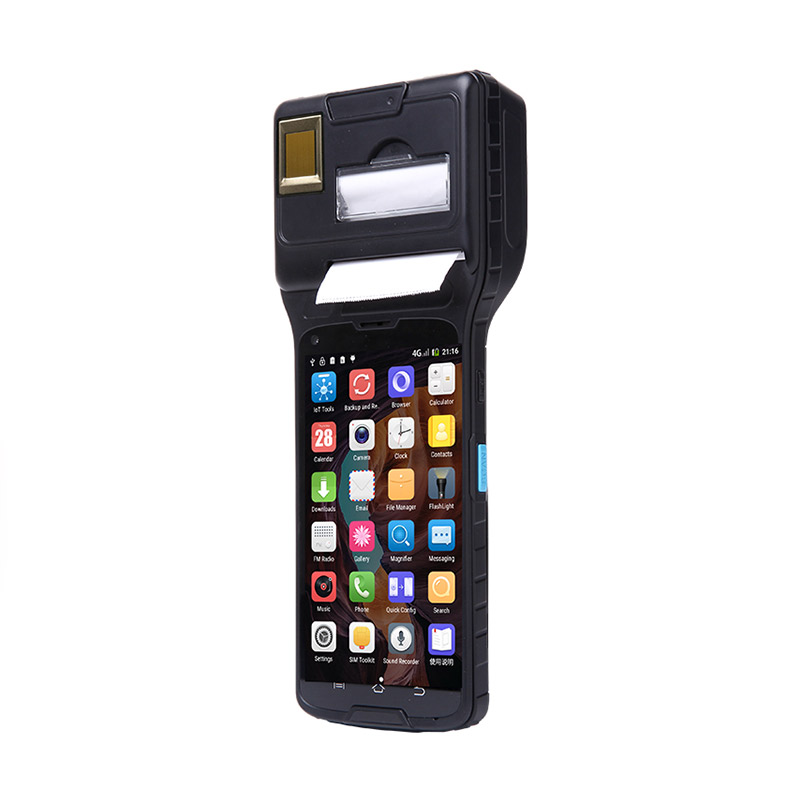

RK550X Terminal portátil de impressão Android

Basic Parameters

Type

Android Industrial Printer Handheld Terminal

CPU

2.5GHz

Graphics Processor

Mali-t720-MP2

Storage

2G LPDDR3 RAM+16G EMMC ROM

OS

Android 7.1

Color

Black

Display

5'' High-resolution , 1280*720 DPI , 5 Points-touch Screen; Corning Gorilla Glass

Fingerprint Sensor

TCS 1

Thermal Printer

2''384 thermal print head , print speed: 20mm/s

Communication

GSM:850/900/1800/1900 , WCDMA:B1/B2/B5/B8 , TDS-CDMA:B34/B39 LTE-TDD:B38/B39/B40 , LTE-FDD:B1/B3/B7/B8/B20

GPS

(Built-in) GPS+BDS , Support A-GPS , High Accuracy Position

Port

Micro USB2.0, support OTG

Memory Interface

TF Card(Micro SD Card) ,128 G

Power Adaptor

Input: 100-240V, 50/60HZ 300mA Output: 5V, 2A

Bluetooth

Bluetooth 4.0 , Support BLE

Audio

Built-in Speaker , MIC , Handset , 3.5mm Headphone Jack

WLAN

802.11a/b/g/n

Camera

8.0 Mega Pixel Rear Camera; 2.0 Mega Pixel Front Camera; Auto Focus; with Led Light

Battery

Li-Polymer 4000mAh

Standby Time

≧100h

Duration

≧8 hours ( full function )

IOT Functions(RFID, Barcode)

1D Barcode

UPC / EAN , Bookland EAN , UCC Coupon Code , ISSN EAN , Code 128 , GS1 - 128 , ISBT128 , Code39 , Trioptic Code39 , Code32 ,Code93 , Code11 , Interleaved 2 of 5 , Discrete 2 of 5 , Codabar , MSI , Chinese 2 of 5 , Korean 3 of 5 , Matrix 2 of 5 , Inverse 1D , GS 1 DataBar , Composite Codes . etc

2D Barcode

PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverse, Han Xin, Han Xin Inverse, etc.

RFID

* Fully support NFC, 14443A/B、15693 Protocol, Reading Distance 2cm~5cm, reading position, battery cover.

*Support UHF RFID (920MHz-925MHz) , EPC C1/G2, ISO 18000-6C Protocol

Working Environment

Operation Temperature

 -20℃ ~60℃ (Thermal Printer 0℃ ~ 40℃)

Storage Temperature

-30℃ ~70℃

Humidity

0~95% (Non-condensing) (Thermal Printer 20% ~ 85℃)
